Downtown Bicycle Sales and Repair

FRAME: Scandium Easton Taperwall GX2
FORK: Niner Carbon Fork
CRANK: Shimano Hollowtech 2, FC-M542 175mm. 22/32/44 (Raceface chainrings)
BRAKES: Avid Elixer CR Hydro disc brakes x 9 shifters (Trigger)
CASSETTE: 9-Speed. 11/32
FD: XTR
RD: Sram X-9 long cage
WHEELSET: Staris ZTR Arc 32-spoke DW with Chris King Hubs
ROTORS: R - 160 mm. F - 185 mm
TIRES: Contintental Race King 29x2.2
WEIGHT: 24 lbs.

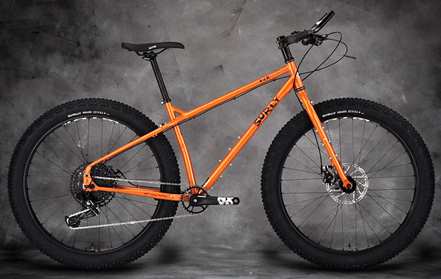

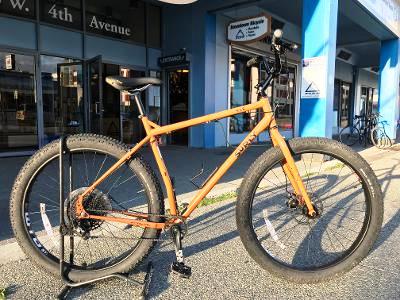

SURLY ECR 29 PLUS

Stock

Sizes

Specifications

1

ST
22"

FRAME:  4130 CroMoly steel. ED coated. Double-butted main triangle. TIG-welded

FORK:  TIG-welded custom-butted 4130 CroMoly, non-suspension corrected, 1-1/8˝ steerer tube, 203mm disc brake clearance.

CRANKSET:  SRAM NX Eagle 30T

BOTTOM BRACKET:  SRAM Powerspline 118/73

REAR DERAILLEUR:  SRAM NX Eagle

CASSETTE:  SRAM Eagle 11-50T

HANDLEBAR:  Surly Moloko, Black

STEM:  ProMax 4 bolt, 31.8

HEADSET:  Cane Creek, 40 series

REAR SHIFTER:  SRAM NX Eagle

BRAKE LEVERS:  Avid FR-5, Black

FRONT BRAKE:  Avid BB7

REAR BRAKE:  Avid BB7

FRONT ROTOR:  Centerline 180mm

REAR ROTOR:  Centerline 160mm

SADDLE:  WTB Volt Sport

SEATPOST:  27.2x350mm

FRONT HUB:  100mm, QR, 32H, QR

REAR HUB:  148mm, 12mm Thru Axle, 32H

RIMS:  WTB Scraper i40

TIRES:  Surly Knard 29x3.0", 33TPI

MAIN FRAME: Fuji A1-Sl Aluminum w/ Power Curve down tube, Hydro formed top tube, Oversized seat tube and semi-integrated head tube
REAR TRIANGLE: Fuji A1-SL-aluminum w. S-bend stay, Cold forged dropout and disc mount w/replaceable hanger.
FORK: SR Suntour XCR 32 w/lock out, 100 mm travel
CRANKSET: Shimano M171, 44/34/24
BOTTOM BRACKET: Sealed cartridge bearing ST
FD: Sram x 7
RD: Sram X7.
SHIFTERS: Sram X 7.
CASSETTE: 11-34T (9-speed)
WHEELSET: Fuji Disc 32 hubs, Jalco AX-430 double-wall rims
TIRES: KENDA k891, 29 X 1.95
BRAKE LEVERS: Shimano Alvio.
BRAKE CALIPERS:  Avid BB7.
WEIGHT: 14.02 / 30.90

MAIN FRAME: Fuji A1-Sl Aluminum w/ Power Curve down tube, Hydro formed top tube, Oversized seat tube and semi-integrated head tube.
REAR TRIANGLE:  Fuji A1-SL-aluminum w. S-bend stay, Cold forged dropout and disc mount w/replaceable hanger.
FORK:  SR Suntour XCR 32 w/lock out, 100 mm travel
CRANKSET: 48/38/28
BOTTOM BRACKET:Sealed cartridge bearing ST
FD:  Shimano SLX
RD: Shimano Deore.
SHIFTERS:  Shimano Alvio.
CASSETTE:  11-34T (9-speed)
F WHEEL:  DSunRim Rhno Lite 32 spoke DW rim with Deore hub.
R WHEEL:  WTB SX23 29" DW 32 spoke DW rim Deore hub.
F TIRE:  WTB Nano 700 x 40c, 60 tpi.
R TIRE:  Panracer Comet Hardpack 29 x 2 .1
BRAKE LEVERS:  Shimano.
BRAKE CALIPERS:  Tektro Novela.
WEIGHT:14.02 / 30.90
HANDLEBARS: 27.75" wide, 5" rise, 31.8 mm clamp.
